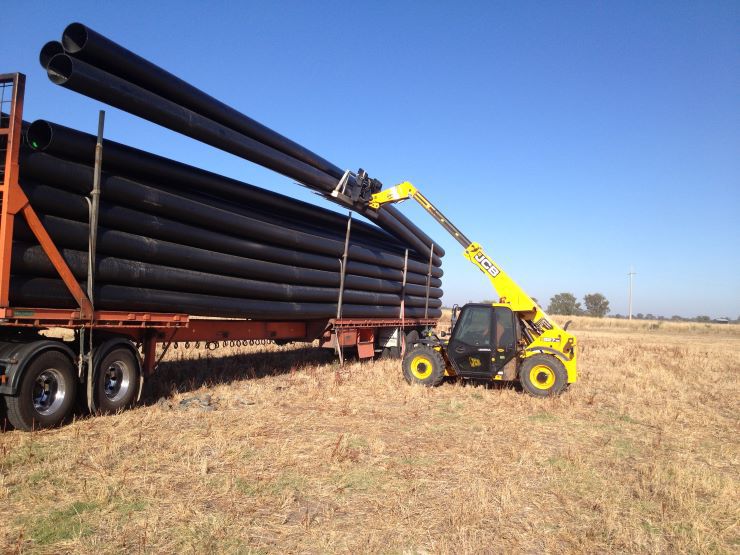

ESTIMATED PIPE LENGTHS PER TRUCK LOAD.
PIPE SIZE: LENGTHS PER LOAD:
110mm 450
125mm 370
140mm 330
160mm 250
200mm 165
225mm 114
250mm 99
280mm 80
315mm 63
355mm 50
400mm 40
450mm 27
500mm 24
560mm 19
630mm 15
710mm 11
800mm 9
1000mm 5
AVAILABLE PRESSURE RATINGS OF PE100 POLYETHYLENE PIPE:
PN4 (SDR41) – Max rating of 40m of Head pressure = 400Kpa = 4 Bar = 58 psi.
PN6.3 (SDR26) – Max rating of 63m of Head pressure = 630Kpa = 6.3 Bar = 92 psi.
PN8 (SDR21) – Max rating of 80m of Head pressure = 800Kpa = 8 Bar = 117psi.
PN10 (SDR17) – Max rating of 100m of Head pressure = 1000Kpa = 10 Bar = 147psi.
PN12.5 (SDR13.6) – Max rating of 125m of Head pressure = 1250Kpa = 12.5 Bar = 183psi.
PN16 (SDR11) – Max rating of 160m of Head pressure = 1600Kpa = 16 Bar = 235psi.
PN20 (SDR9) – Max rating of 200m of Head pressure = 2000Kpa = 20 Bar = 290psi.
A HANDY TIP: If you want to know the estimated wall thickness of your pipe divide the outside pipe diameter by the SDR. (For example 355mm PN8 pipe is 355 divided by 21 = 16.9mm wall thickness)
